Category: Cord Grip Connectors

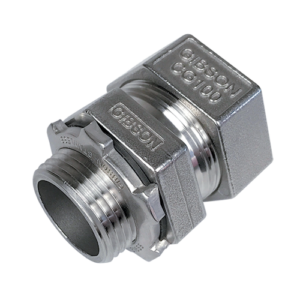

Cord Grip Connectors

Downloads

Submittal Sheet: Cord Grip Connector

Cord grip connectors are designed to provide a weather-tight seal and a means of terminating flexible cord or cable in devices, boxes, or enclosures.

Material:
-Body: CF8M (316 SS)
-Rubber Bushing: EPDM
-Metal Ring: 316 SS
-Nut: CF8M (316 SS)
-Gasket: Neoprene
-Locknut: 316 SS

100% Made in USA

Part Number	Trade Size	Short Description	Cable Range	Material	Buy
CG50-125-188	1/2	1/2" Cord Grip Connector	.125 - .188	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG50-125-188 quantity Add to Quote
CG50-188-250	1/2	1/2" Cord Grip Connector	.188 - .250	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG50-188-250 quantity
CG50-250-313	1/2	1/2" Cord Grip Connector	.250 - .313	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG50-250-313 quantity
CG50-313-375	1/2	1/2" Cord Grip Connector	.313 - .375	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG50-313-375 quantity
CG50-375-438	1/2	1/2" Cord Grip Connector	.375 - .438	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG50-375-438 quantity
CG50-438-500	1/2	1/2" Cord Grip Connector	.438 - .500	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG50-438-500 quantity
CG50-500-563	1/2	1/2" Cord Grip Connector	.500 - .563	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG50-500-563 quantity
CG50-563-610	1/2	1/2" Cord Grip Connector	.563 - .610	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG50-563-610 quantity
CG75-188-250	3/4	3/4" Cord Grip Connector	.188 - .250	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG75-188-250 quantity
CG75-250-313	3/4	3/4" Cord Grip Connector	.250 - .313	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG75-250-313 quantity
CG75-313-375	3/4	3/4" Cord Grip Connector	.313 - .375	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG75-313-375 quantity
CG75-375-438	3/4	3/4" Cord Grip Connector	.375 - .438	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG75-375-438 quantity
CG75-438-500	3/4	3/4" Cord Grip Connector	.438 - .500	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG75-438-500 quantity
CG75-500-563	3/4	3/4" Cord Grip Connector	.500 - .563	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG75-500-563 quantity
CG75-563-625	3/4	3/4" Cord Grip Connector	.563 - .625	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG75-563-625 quantity
CG75-625-688	3/4	3/4" Cord Grip Connector	.625 - .688	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG75-625-688 quantity
CG75-688-750	3/4	3/4" Cord Grip Connector	.688 - .750	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG75-688-750 quantity
CG75-750-810	3/4	3/4" Cord Grip Connector	.750 - .810	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG75-750-810 quantity
CG100-375-438	1	1" Cord Grip Connector	.375 - .438	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG100-375-438 quantity
CG100-438-500	1	1" Cord Grip Connector	.438 - .500	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG100-438-500 quantity
CG100-500-563	1	1" Cord Grip Connector	.500 - .563	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG100-500-563 quantity
CG100-563-625	1	1" Cord Grip Connector	.563 - .625	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG100-563-625 quantity
CG100-625-688	1	1" Cord Grip Connector	.625 - .688	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG100-625-688 quantity
CG100-688-750	1	1" Cord Grip Connector	.688 - .750	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG100-688-750 quantity
CG100-750-813	1	1" Cord Grip Connector	.750 - .813	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG100-750-813 quantity
CG100-813-875	1	1" Cord Grip Connector	.813 - .875	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG100-813-875 quantity
CG100-875-938	1	1" Cord Grip Connector	.875 - .938	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG100-875-938 quantity
CG100-938-1000	1	1" Cord Grip Connector	.938 - 1.000	-Body: CF8M (316 SS), -Gasket: Neoprene, -Locknut: 316 SS, -Metal Ring: 316 SS, -Nut: CF8M (316 SS), -Rubber Bushing: EPDM	CG100-938-1000 quantity

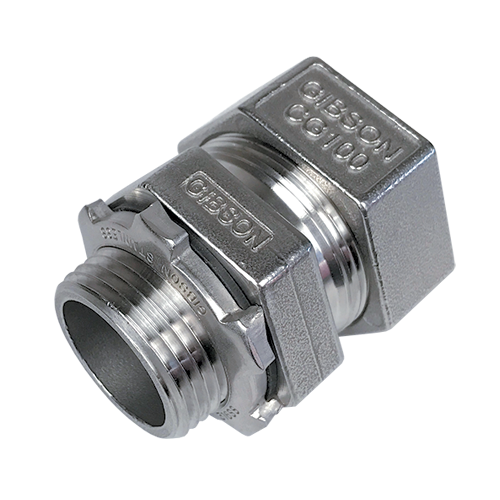

Cord Grip Connectors

Cord grip connectors are designed to provide a weather-tight seal and a means of terminating flexible cord or cable in devices, boxes, or enclosures.

Material:
-Body: CF8M (316 SS)
-Rubber Bushing: EPDM
-Metal Ring: 316 SS
-Nut: CF8M (316 SS)
-Gasket: Neoprene
-Locknut: 316 SS

100% Made in USA

Showing 1–20 of 28 results

Please note: Our products are sold through authorized distributors only. If requesting a quote, we’d be happy to provide the suggested list price and help you locate your Manufacturer’s Representative or a distributor in your area.
