GUA Series Conduit Bodies
GUA series conduit bodies are installed in hazardous area locations to act as pulling and splice boxes, connect lengths of conduit and provide access to conductors for maintenance.
The GUA conduit bodies hold the following ratings:
– CL I, DIV 1 & 2, Groups C, D
– CL II, DIV 1 & 2, Groups E, F, G
– CL III
– NEMA 4X Rated

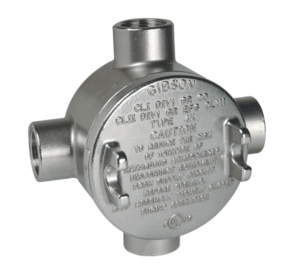

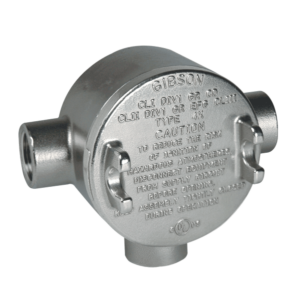

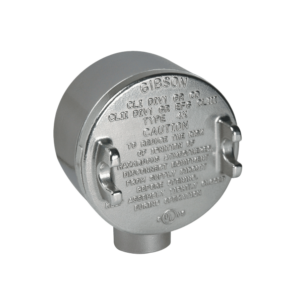

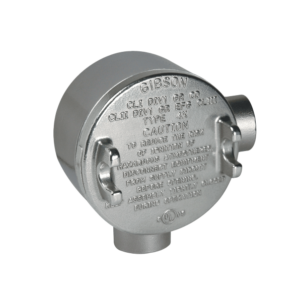

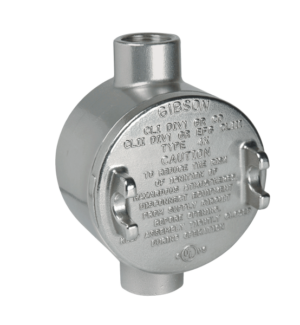

Gibson Stainless offers these conduit bodies in five configurations: C, X, T, B and L.
These hazardous location conduit bodies are supplied with a cover that has cast-in brackets for use with breaker-bars for tightening/loosening and a neoprene o-ring.
Material:
-Body: CF8M/316 SS
-O-Ring: Neoprene
Compliances: UL Listed for Canada and US (ANSI/UL Standards 1203, 50, 50E)
UL File Number QBCR.E339535
Canada UL File Number QBCR7.E339535
100% Made in USA
