Stainless Steel Split Ring Extension Rods
Submittal Sheet: Split Ring Clamp
Downloads
Split ring clamps are designed to provide space between a raceway and the wall, floor, ceiling or other structure on which it is run. This “stand-off” is often found in wash-down areas where water and chemicals are used to clean the area and where it is necessary to ensure nothing is trapped between the conduit system and the mounting surface. Gibson split ring clamps can be used for vertical or horizontal conduit runs.
Gibson Stainless sells the split ring clamp components separately.

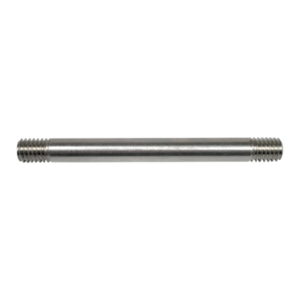

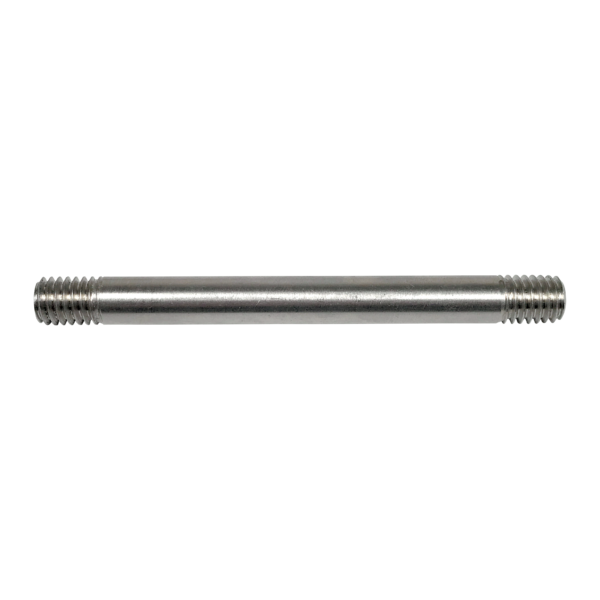

The extension rods are offered in ⅜” diameter and in 2”, 4”, or 6” lengths.
Material: 316 SS
Standards: ASTM A193 B8M Class 1
100% Made in USA
| Part Number | Size (in.) | Short Description | Material | Buy |
|---|---|---|---|---|
| SRE375x2 | 3/8 x 2 | 3/8" x 2" Split Ring Extension Rod | 316 SS | |
| SRE375x4 | 3/8 x 4 | 3/8" x 4" Split Ring Extension Rod | 316 SS | |
| SRE375x6 | 3/8 x 6 | 3/8" x 6" Split Ring Extension Rod | 316 SS |
