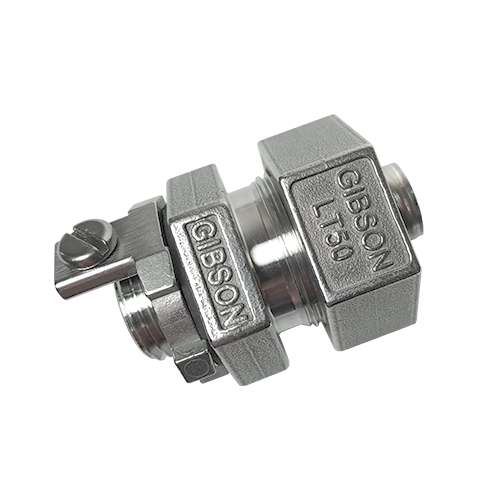

3/4" Type 316 SS Grounding Straight Liquidtight Connector

Grounding Straight Liquidtight Connector

Part Number: LT75-G

Part Description:

Designed for use with flexible liquidtight conduit; provides the means of connecting to boxes in wet or dry locations. A grounding lug and screw provide a secure connection for ground wiring.

Made in USA
RoHS
REACH
Add to Quote
SKU: LT75-G Category:

Additional information

Trade Size

3/4
Material

-Body: CF8M (316 SS), -Gland Nut: 316 SS, -Inside Ferrule: 316 SS, -Locknut: 316 SS, -Sealing Gasket: Neoprene, -Sealing Ring: Polypropylene
Weight/100 (lbs.)

38
Dimension A (in.)

1.7
Dimension B (in.)

1.07
Dimension C (in.)

3/4-14 NPT
Dimension D (in.)

0.82
Dimension E (in.)

1.45
Dimension F (in.)

2.07
Country of Origin

100% Made in USA

CAD

Application

  • Manufactured in stainless steel to help prevent corrosion
  • Can be installed using ordinary hand tools and require little maintenance or repair
  • Provided in a bright, polished finish that does not require touch up or painting

Used in areas where corrosion is a concern:
