Stainless Steel U-Bolts

Downloads

Submittal Sheet: U-Bolt

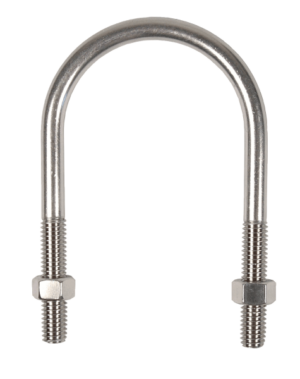

Stainless steel u-bolts are used to run and support conduit or pipe in electrical systems. Gibson Stainless offers u-bolts for both rigid conduit and mechanical applications (Figure 137 style u-bolts).

Sizes 1/2" - 4" are supplied complete with one nut on each leg.
Sizes 5" - 20" are supplied complete with two nuts on each leg.

Material: 316 SS
Standards: ASTM A193 B8M Class 1, ASTM F593

U-bolt manufactured in USA; hex nuts and raw material for u-bolt may or may not be of U.S. origin.

Part Number	Trade Size	Thread Size & Pitch	Short Description	Material	Buy
0050	1/2	5/16-18	1/2" U-Bolt	316 SS	0050 quantity Add to Quote
0075	3/4	5/16-18	3/4" U-Bolt	316 SS	0075 quantity
0100	1	5/16-18	1" U-Bolt	316 SS	0100 quantity
0125	1-1/4	5/16-18	1-1/4" U-Bolt	316 SS	0125 quantity
0150	1-1/2	5/16-18	1-1/2" U-Bolt	316 SS	0150 quantity
0200	2	3/8-16	2" U-Bolt	316 SS	0200 quantity
0250	2-1/2	3/8-16	2-1/2" U-Bolt	316 SS	0250 quantity
0300	3	3/8-16	3" U-Bolt	316 SS	0300 quantity
0350	3-1/2	3/8-16	3-1/2" U-Bolt	316 SS	0350 quantity
0400	4	3/8-16	4" U-Bolt	316 SS	0400 quantity
0500	5	1/2-13	5" U-Bolt	316 SS	0500 quantity
0600	6	5/8-11	6" U-Bolt	316 SS	0600 quantity
0800	8	5/8-11	8" U-Bolt	316 SS	0800 quantity
01000	10	3/4-10	10" U-Bolt	316 SS	01000 quantity
01200	12	7/8-9	12" U-Bolt	316 SS	01200 quantity
01400	14	7/8-9	14" U-Bolt	316 SS	01400 quantity
01600	16	7/8-9	16" U-Bolt	316 SS	01600 quantity
01800	18	1-8	18" U-Bolt	316 SS	01800 quantity
02000	20	1-8	20" U-Bolt	316 SS	02000 quantity

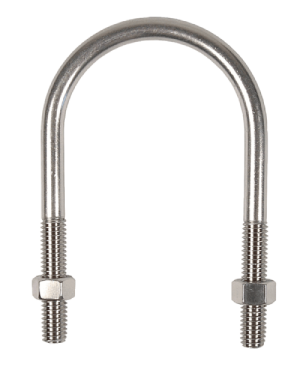

Stainless Steel U-Bolts

Sizes 1/2″ – 4″ are supplied complete with one nut on each leg.
Sizes 5″ – 20″ are supplied complete with two nuts on each leg.

Material: 316 SS
Standards: ASTM A193 B8M Class 1, ASTM F593

U-bolt manufactured in USA; hex nuts and raw material for u-bolt may or may not be of U.S. origin.
