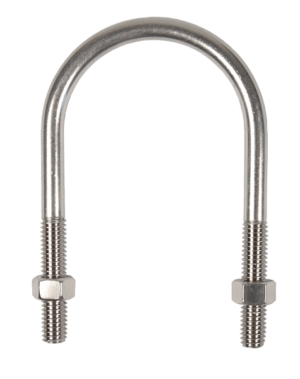

Stainless Steel U-Bolts - "Figure 137" Style

Downloads

Submittal Sheet: Figure 137 Style U-Bolt

Stainless steel u-bolts are used to run and support conduit or pipe in electrical systems. Gibson Stainless offers u-bolts for both rigid conduit and mechanical applications (figure 137 style u-bolts).

Figure 137 style u-bolts are sold complete with one nut on each leg.

Material: 316 SS
Standards: ASTM A193 B8M Class 1, ASTM F593

U-bolt manufactured in USA; hex nuts and raw material for u-bolt may or may not be of U.S. origin.

Part Number	Trade Size	Thread Size & Pitch	Short Description	Material	Buy
0050-137	1/2	1/4-20	1/2" Figure 137 Style U-Bolt	316 SS	0050-137 quantity Add to Quote
0075-137	3/4	1/4-20	3/4" Figure 137 Style U-Bolt	316 SS	0075-137 quantity
0100-137	1	1/4-20	1" Figure 137 Style U-Bolt	316 SS	0100-137 quantity
0125-137	1-1/4	3/8-16	1-1/4" Figure 137 Style U-Bolt	316 SS	0125-137 quantity
0150-137	1-1/2	3/8-16	1-1/2" Figure 137 Style U-Bolt	316 SS	0150-137 quantity
0200-137	2	3/8-16	2" Figure 137 Style U-Bolt	316 SS	0200-137 quantity
0250-137	2-1/2	1/2-13	2-1/2" Figure 137 Style U-Bolt	316 SS	0250-137 quantity
0300-137	3	1/2-13	3" Figure 137 Style U-Bolt	316 SS	0300-137 quantity
0350-137	3-1/2	1/2-13	3-1/2" Figure 137 Style U-Bolt	316 SS	0350-137 quantity
0400-137	4	1/2-13	4" Figure 137 Style U-Bolt	316 SS	0400-137 quantity

Stainless Steel U-Bolts - "Figure 137" Style

Figure 137 style u-bolts are sold complete with one nut on each leg.

Material: 316 SS
Standards: ASTM A193 B8M Class 1, ASTM F593

U-bolt manufactured in USA; hex nuts and raw material for u-bolt may or may not be of U.S. origin.
