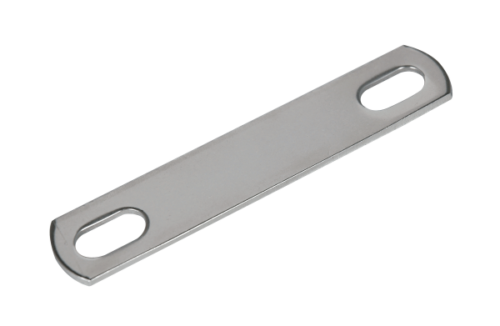

Stainless Steel U-Bolt Plates - "Figure 137" Style

Downloads

Submittal Sheet: Figure 137 Style U-Bolt Plate

U-bolt plates (sold separately) help to provide a uniform surface upon which to tighten hex nuts. U-bolt plates are designed to fit Gibson Stainless U-bolts.

Used with Gibson Stainless "Figure 137" Style U-bollts.

Material: 316 SS
Standards: ASTM A240

100% Made in USA

Part Number	Trade Size	Short Description	Use with Gibson Part Number	Material	Buy
P50-137	1/2	1/2" Figure 137 Style U-Bolt Plate	0050-137	316 SS	P50-137 quantity Add to Quote
P75-137	3/4	3/4" Figure 137 Style U-Bolt Plate	0075-137	316 SS	P75-137 quantity
P100-137	1	1" Figure 137 Style U-Bolt Plate	0100-137	316 SS	P100-137 quantity
P125-137	1-1/4	1-1/4" Figure 137 Style U-Bolt Plate	0125-137	316 SS	P125-137 quantity
P150-137	1-1/2	1-1/2" Figure 137 Style U-Bolt Plate	0150-137	316 SS	P150-137 quantity
P200-137	2	2" Figure 137 Style U-Bolt Plate	0200-137	316 SS	P200-137 quantity
P250-137	2-1/2	2-1/2" Figure 137 Style U-Bolt Plate	0250-137	316 SS	P250-137 quantity
P300-137	3	3" Figure 137 Style U-Bolt Plate	0300-137	316 SS	P300-137 quantity
P350-137	3-1/2	3-1/2" Figure 137 Style U-Bolt Plate	0350-137	316 SS	P350-137 quantity
P400-137	4	4" Figure 137 Style U-Bolt Plate	0400-137	316 SS	P400-137 quantity
